San Florian — Open-Source Pre-Flame Wildfire Defense & Tactical Incident Command

HISTORICAL PATRONAGE & INSPIRATION

San Florián: The Patron of Firefighters & The Modern Sentinel

Bridging Polish and Spanish firefighting traditions into a universal, open-source defense against catastrophic climate wildfires.

SAN FLORIÁN Patrono de Polonia y de los bomberos • 4 de mayo

THE LEGEND OF THE WATER VESSEL

A 1,700-Year Heritage of Valor and Prevention

Saint Florian was a prominent commander of the Roman army stationed in Noricum (modern-day Austria). Recognized as the pioneer organizer of dedicated firefighter brigades, legend holds that he saved an entire burning city from devastation by pouring out a single vessel of water—stopping the blaze before it could consume the homes of thousands.

✠ The Polish & Spanish European Alliance

San Florián unites the roots of our mission: celebrated as the sacred patron saint of Poland (cherished by co-founder Grzegorz Gabriel Kocój) and the revered protector of Spain’s firefighters & INFOCA brigades (championed in our Andalusia mountain trials at LAB Genalguacil).

✠ The 21st Century Pitcher of Water: Pre-Flame AI

Our technology embodies Saint Florian's ancient principle: Do not wait for the forest to burn. By detecting chemical pyrolysis outgassing and sub-canopy thermal stress before ignition, we provide the modern equivalent of Saint Florian’s vessel—stopping the catastrophe before the open flame is born.

THE CRISIS OF MONOPOLIES

Why Multi-Million-Euro Closed Systems Fail Our Forests

The European Commission and nations spend hundreds of millions on proprietary contracts. Yet protecting vulnerable regions like southern Spain remains cost-prohibitive under closed commercial monopolies.

The Proprietary Monopoly

CLOSED CONTRACTS & VENDOR LOCK-IN

✕ Reactive Detection: Optical cameras only sound the alarm once massive smoke plumes or visible flames have already consumed hectares.
✕ Exorbitant Capital Costs: Demanding €100M+ budgets with heavy concrete civil works, leaving rural mountain villages defenseless.
✕ Vendor Lock-in: Inflexible black-box software unable to interoperate with local firefighter radios or open tactical maps.

✠

The San Florian Open Stack

PUBLIC COMMONS & PRE-FLAME RESILIENCE

✓ Pre-Flame Early Inception: Sniffs out sub-canopy chemical outgassing (VOCs/CO) and localized heat stress before ignition breaks out.
✓ Off-The-Shelf & Modular: Built with mature, accessible hardware. Deployed in weeks with zero concrete helical ground anchors.
✓ Shared Humanity Asset: Open-source protocols give regional fire services full code ownership and total independence.

CAPVT I • SPECULATIO

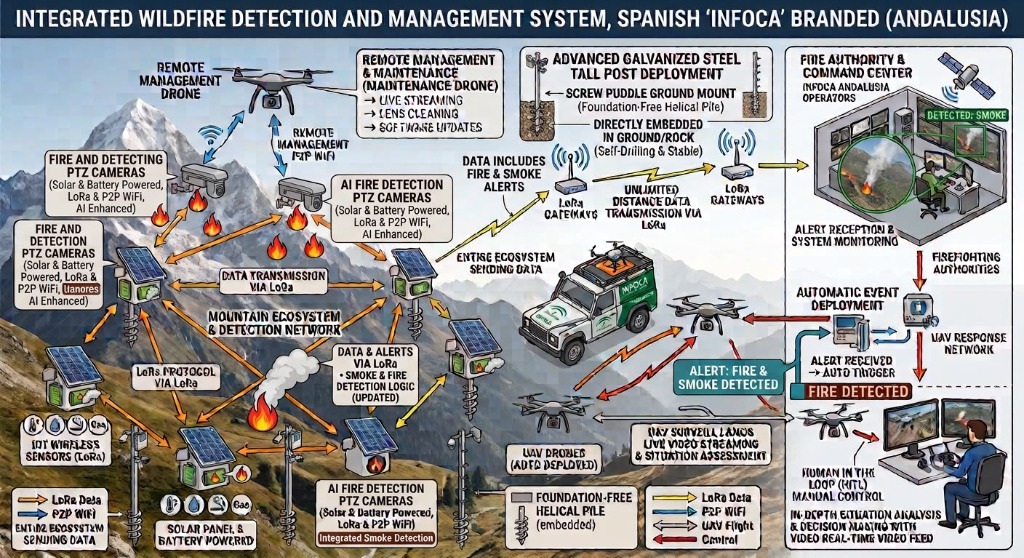

The 3-Tier Pre-Flame Detection & Observation Matrix

Ground chemical sensors, elevated AI optics, and tactical UAVs work in mutual synergy to catch wildfires during the invisible pre-flame phase.

TIER I (GROUND) ● ACTIVE SENSING

Ground Chemical & IoT Nodes

OFF-GRID LORA • PYROLYSIS INCEPTION

Monitors pre-flame biomass pyrolysis beneath the tree canopy: Volatile Organic Compounds (VOCs), Carbon Monoxide, localized temperature spikes, and relative humidity drop.

Detection Stage: Pre-Flame Smoldering

Operation: 24/7 Darkness & Fog

Mounting: Helical Rock Mount

✠ Continuous Sub-Canopy Inception

Optical Sentinel

TIER II (ELEVATED) ● SCANNING

Edge-AI Solar PTZ Optics

ON-CHIP VISION • THERMAL PRECURSORS

High-definition optical and radiometric PTZ cameras running open-source visual AI. Detects faint incipient micro-smoke plumes and pre-ignition thermal blooms over wide horizons.

AI Inference: Edge (0ms Cloud Latency)

Alert Feed: LoRa Packet Broadcast

Backhaul: P2P WiFi / 4G / Satellite

✠ Automated Vector Cross-Cueing

TIER III (AERIAL) ● DISPATCH READY

Automated UAV Fleet (HITL)

FLIR THERMAL SCAN • AIRBORNE RELAY

Quasi-automatically launched from mobile vehicle docks (e.g. INFOCA 4x4) upon pre-flame alert. Inspects sub-canopy thermal hotspots with radiometric FLIR sensors under Human-in-the-Loop oversight.

Recon Payload: Pre-Flame FLIR Radiometric

Secondary Role: Airborne Mesh Radio Node

Maintenance: Camera Lens Cleaning & OTA

✠ Human-In-The-Loop Live Feed

Interactive Redundant Cross-Verification

SELECT INCEPTION TRIGGER TO SIMULATE MUTUAL VERIFICATION

Scenario A: Sub-Canopy VOC & Thermal Anomaly (Ground Sensor Inception)

STAGE I: INCEPTION DETECTED

Tier 1 LoRa Environmental Node detects rapid spike in Volatile Organic Compounds (VOCs) & localized heat beneath dense forest canopy.

STAGE II: OPTICAL CUEING

Autonomous Cross-Trigger: GPS coordinates dispatched over LoRa to nearest Tier 2 Solar PTZ Camera to slew and zoom onto the location.

STAGE III: UAV VERIFICATION

Tier 3 UAV Tactical Drone launched from mobile INFOCA unit for close-range thermal FLIR inspection with Human-in-the-Loop decision.

CAPVT II • VINCULA

The 4-Tier Fail-Safe Communications Shield

When mountain power lines fall and cellular towers burn, communications dynamically degrade across 4 resilient layers with zero blackout risk.

PRIMARY BACKHAUL

Tier 1: LEO Satellite Internet

Satellite Linked (99.9% Uptime)

BANDWIDTH 50 - 150 Mbps

LATENCY 35 - 55 ms

VIDEO STREAM 1080p 60fps HD

Active Data Capabilities:

✠

Continuous Shield Integrity: Operational under open sky conditions with mobile vehicle terminal.

CAPVT III • IMPERIVM

Tactical Incident War Room & Battle Map

Inspired by real-time strategy battlefield command. Sentry watchtowers scan the horizon, aerial scout falcons reveal the terrain, and firefighter cohorts intercept pre-flame threats across the Genal Valley.

✠ ANDALUSIAN BATTLE MAP • REAL-TIME STRATEGY SIMULATOR

🏰 Sentry Towers 🦅 Aerial Scout ⚔️ Firefighter Cohorts 🔥 Pre-Flame Vector

⚔️ ACTIVE UNIT COMMAND PROFILE (CLICK ANY MAP UNIT TO SELECT) ● LIVE TELEMETRY STREAM

Real-Time PLI Tracking

Live coordinates for all firefighters, 4x4 trucks, fixed sensors, and UAVs on an open geospatial map overlay.

Dynamic Route Safety

Automated terrain, elevation, and wind-vector aware routing to direct responding teams around active smoke flanks.

Multi-Agency Sharing

Open standard bridges to share situation maps with Police, Civil Protection, and Medical dispatch units.

Emergency SOS Beacon

Failsafe distress beacon transmitted automatically over any available layer, falling back to LoRa packets when isolated.

CAPVT IV • CHRONICA

Tested & Proven at LAB Genalguacil (Andalusia)

Rigorous mountain trials in the Genal Valley, proving that off-grid open-source pre-flame prevention works across Mediterranean rugged terrain.

TECHNICAL FIELD ARCHITECTURE

Key Field Achievement: Self-drilling helical pile mounts anchored into mountain bedrock in under 2 hours without concrete pouring or ecological disruption.

AH

Alexandru Harabagiu

CO-FOUNDER & RESEARCHER

Co-founding system architecture, pre-flame detection research, and cross-tier ecosystem integration.

GK

Grzegorz Gabriel Kocój

CO-FOUNDER & RESEARCH LEAD

Led exhaustive global literature review, edge computer vision pipeline development, and field RF mesh configurations.

MH

Miguel Ángel Herrera Gutiérrez

MAYOR OF GENALGUACIL & LAB CHAMPION

Crucial municipal and territorial support at LAB Genalguacil, championing rural technology and environmental defense.

JL

Joe Lockwood FRSA

STRATEGIC INNOVATION ADVISOR

Strategic innovation framework and ecosystem scale methodology for public-private disaster resilience adoption.

JE

Jose (El Patio)

FIELD OPERATIONS & LOCAL LOGISTICS

Mountain terrain access, ground anchor testing, and logistical execution in the Genal Valley.

✠ THE CRUSADE TO PROTECT OUR FORESTS ✠

We proved it works in the field.
Let us scale the shield together.

The software and hardware are mature, accessible, and fast to deploy. What is missing now is an entity, regional government (like Junta de Andalucía / INFOCA), or impact funder ready to scale this from a pilot into a dedicated, high-impact regional deployment.

Direct Diplomatic Inquiry

Extinguishing the Inferno Before the Spark Ignites.
